whuctf新生练习赛-re-boss-wp

·

1、修复DOS头

打开DIE发现不能识别出文件类型，是DOS头受损，需要手动修复。打开010 Editor，果然文件头是错的。

DOS格式是什么呢？

DOS头（IMAGE_DOS_HEADER）的大小为40H（64字节）

DOS头的基本结构如下：

struct _IMAGE_DOS_HEADER {

0x00 WORD e_magic; * //5A 4D MZ标记，用来判断是否为可执行文件

0x02 WORD e_cblp; //00 90

0x04 WORD e_cp; //00 03

0x06 WORD e_crlc; //00 00

0x08 WORD e_cparhdr; //00 04

0x0a WORD e_minalloc; //00 00

0x0c WORD e_maxalloc; //FF FF

0x0e WORD e_ss; //00 00

0x10 WORD e_sp; //00 B8

0x12 WORD e_csum; //00 00

0x14 WORD e_ip; //00 00

0x16 WORD e_cs; //00 00

0x18 WORD e_lfarlc; //00 40

0x1a WORD e_ovno; //00 00

0x1c WORD e_res[4]; //00 00 00 00

0x24 WORD e_oemid; //00 00

0x26 WORD e_oeminfo; //00 00

0x28 WORD e_res2[10]; //00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

0x3c DWORD e_lfanew; * //00 00 00 E8 PE头相对于文件的偏移，用于定位PE文件

};

比较重要的两个地方：

e_magic：在DOS头开始的位置，大小为2字节，存储的内容一般为5A 4D，也就是’MZ’的十六进制，’MZ’是MS-DOS的创建者之一Mark Zbikowski名字的缩写，通常用来判断文件是否为可执行文件。

e_lfanew：在DOS头结束的位置，大小为4字节，是PE头相对于文件的偏移，用于定位PE文件头的位置。

故把mz改为大写，再把0x3c处00改为E8。

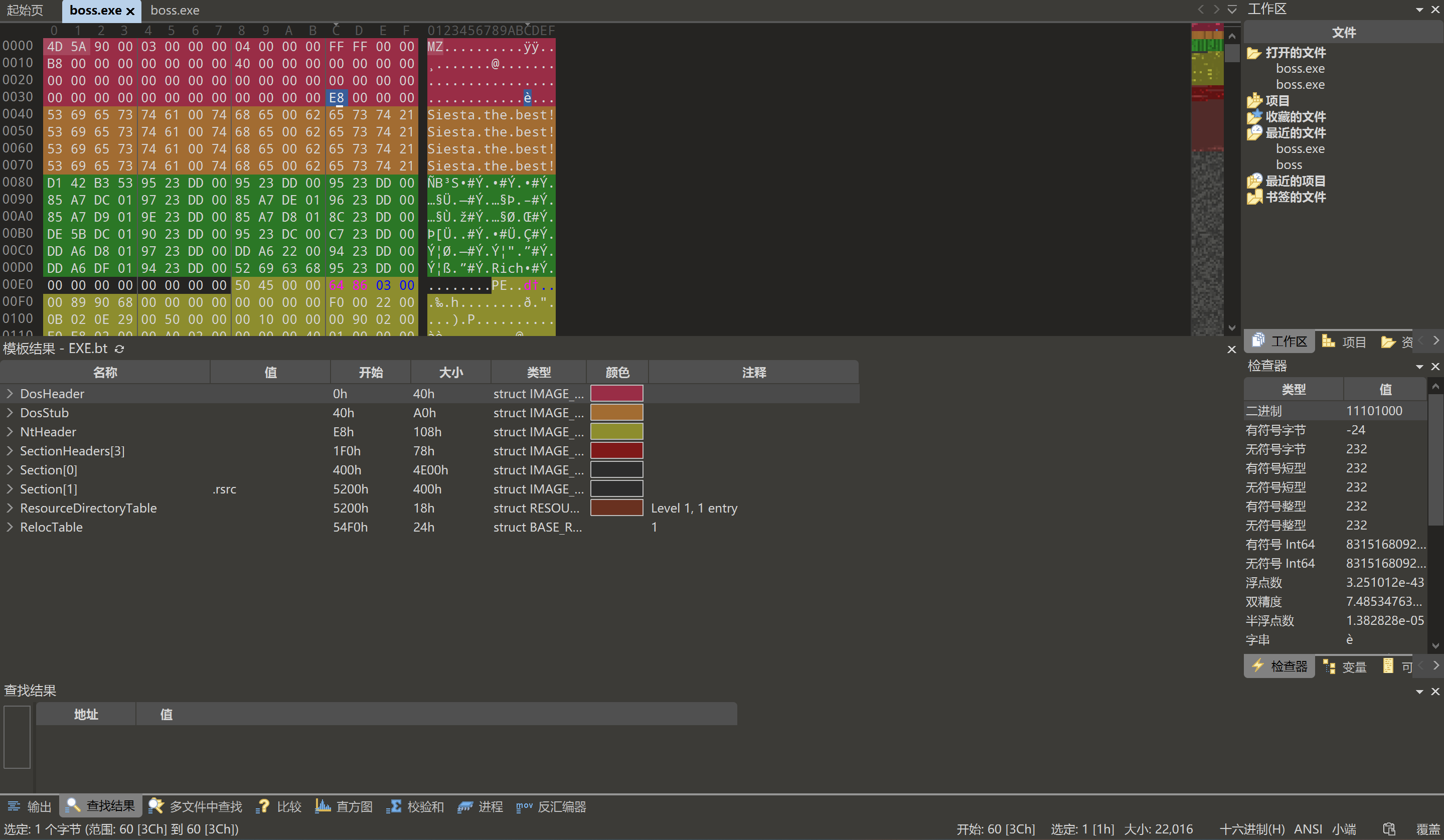

修改之后的结果

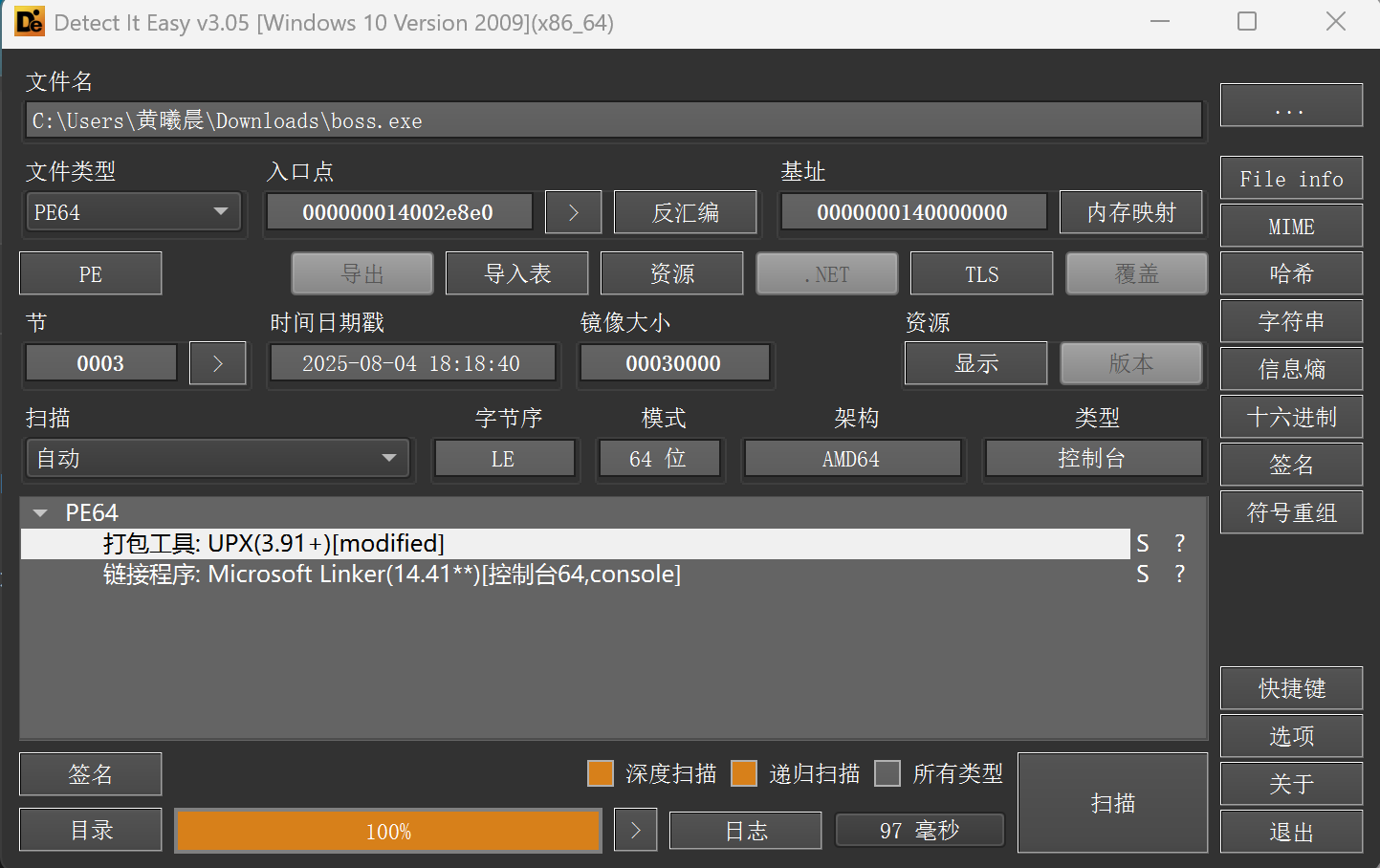

修改之后就可以看到文件类型了，是upx加壳后的程序。

2、UPX脱壳

用自动脱壳工具发现upx的头也被篡改，不能直接脱壳，所以我们有两种方式来完成脱壳：修复upx标志以自动脱壳，或者手动脱壳。

（1）自动脱壳

在PE头后面的data段之后，我们就找到了section table，这部分每隔40字节就有一个upx，然后最后面版本号也需要一个upx，全部补齐后，我们就可以使用自动脱壳的脚本来做了。

（2）手动脱壳（用x64dbg）

注意，目前新版的upx都已经不是以pushad和popad作为标志了，网上找到的大部分手动脱壳的教程有些过时了已经。

所以，我们能找到的依据是什么呢？

虽然pushad和popad已经没了，但是原理还是不变的，也就是在解压缩开始时压栈，在解压缩结束时弹出这部分栈。

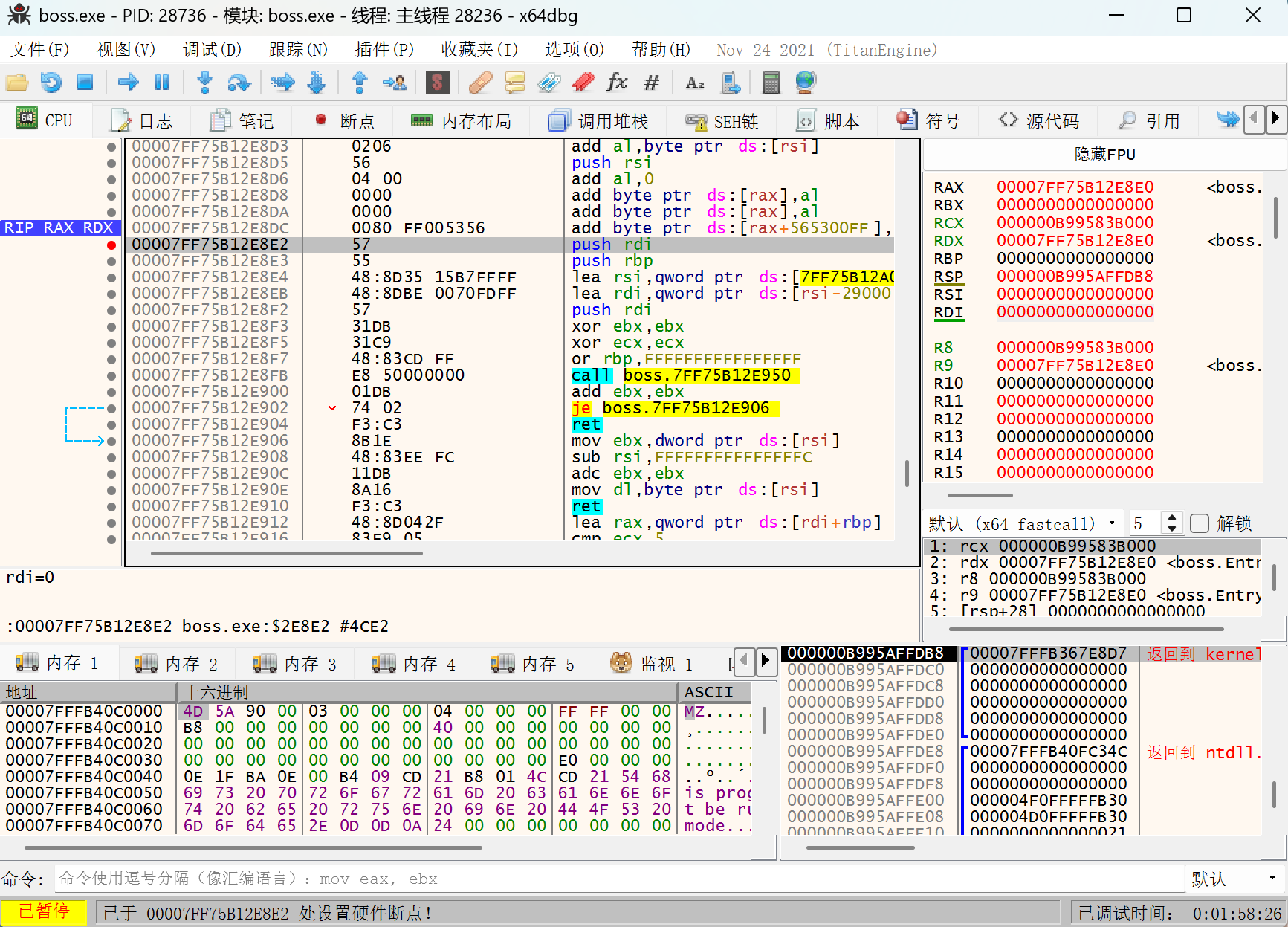

这是入口

在入口处设置硬件断点，寻找到出口。

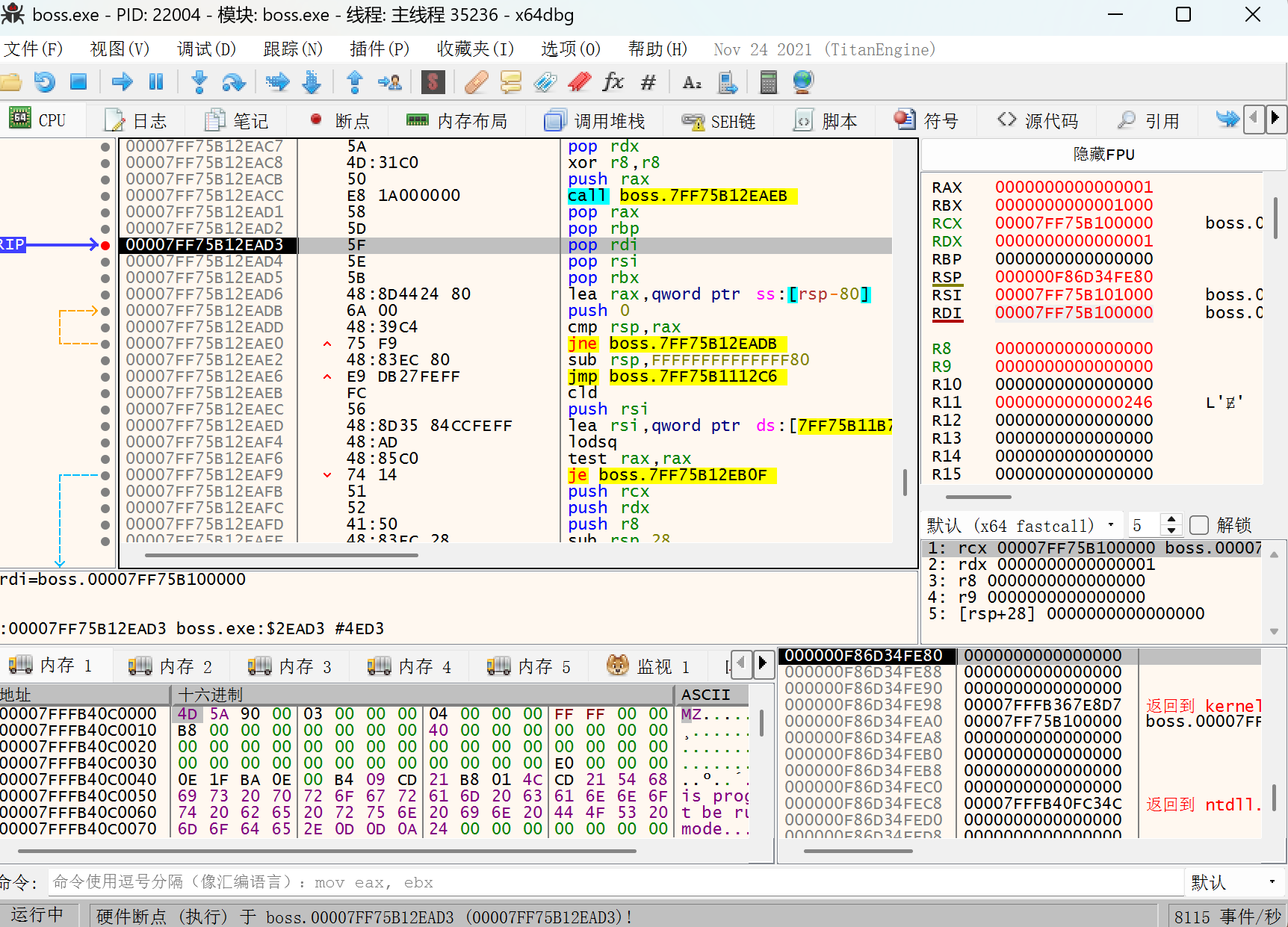

这是出口

在jmp后dump下来，就是脱壳后的程序了。

3、IDA分析–tls回传函数

TLS回调函数常用于反调试，主要是利用了TLS回调函数的调用要先于EP代码的执行。

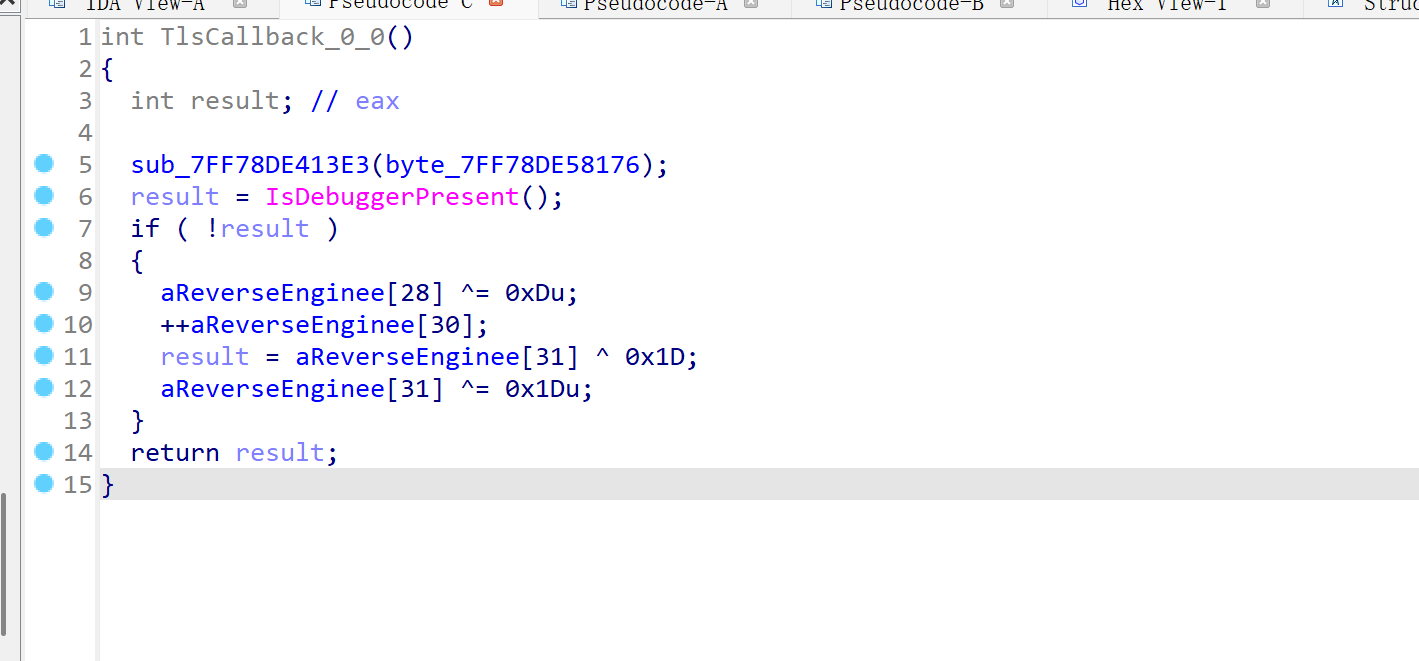

翻阅函数列表，发现有一个函数名为TlsCallback_0

这就是那个tls回调函数，因此密钥实际上不是显示的那个’Reverse engineering is very hard and interesting’，而是经过处理后的

‘Reverse engineering is very easy and interesting’。

另外就是分析加密函数逻辑了，ai分析发现是魔改版的blowfish加密

4、解密脚本–blowfish解密

正常的ECB模式，没有数据填充（因为直接就是8的倍数，不需要填充）

魔改点：1、P盒初始化的时候多异或了一个0x12；

2、存储的时候是小段序，但blowfish加密是大端序的。

所以，我们可以将标准解密脚本修改如下

blowfish.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
#pragma once
#pragma once

/*

使用BlowFish进行加解密
*/

//定义全局旧的pbox sbox 都是根据小数来的。


#define N               16

static const unsigned long ORIG_P[16 + 2] = {
        0x243F6A88L, 0x85A308D3L, 0x13198A2EL, 0x03707344L,
        0xA4093822L, 0x299F31D0L, 0x082EFA98L, 0xEC4E6C89L,
        0x452821E6L, 0x38D01377L, 0xBE5466CFL, 0x34E90C6CL,
        0xC0AC29B7L, 0xC97C50DDL, 0x3F84D5B5L, 0xB5470917L,
        0x9216D5D9L, 0x8979FB1BL
};

static const unsigned long ORIG_S[4][256] = {
    {   0xD1310BA6L, 0x98DFB5ACL, 0x2FFD72DBL, 0xD01ADFB7L,
        0xB8E1AFEDL, 0x6A267E96L, 0xBA7C9045L, 0xF12C7F99L,
        0x24A19947L, 0xB3916CF7L, 0x0801F2E2L, 0x858EFC16L,
        0x636920D8L, 0x71574E69L, 0xA458FEA3L, 0xF4933D7EL,
        0x0D95748FL, 0x728EB658L, 0x718BCD58L, 0x82154AEEL,
        0x7B54A41DL, 0xC25A59B5L, 0x9C30D539L, 0x2AF26013L,
        0xC5D1B023L, 0x286085F0L, 0xCA417918L, 0xB8DB38EFL,
        0x8E79DCB0L, 0x603A180EL, 0x6C9E0E8BL, 0xB01E8A3EL,
        0xD71577C1L, 0xBD314B27L, 0x78AF2FDAL, 0x55605C60L,
        0xE65525F3L, 0xAA55AB94L, 0x57489862L, 0x63E81440L,
        0x55CA396AL, 0x2AAB10B6L, 0xB4CC5C34L, 0x1141E8CEL,
        0xA15486AFL, 0x7C72E993L, 0xB3EE1411L, 0x636FBC2AL,
        0x2BA9C55DL, 0x741831F6L, 0xCE5C3E16L, 0x9B87931EL,
        0xAFD6BA33L, 0x6C24CF5CL, 0x7A325381L, 0x28958677L,
        0x3B8F4898L, 0x6B4BB9AFL, 0xC4BFE81BL, 0x66282193L,
        0x61D809CCL, 0xFB21A991L, 0x487CAC60L, 0x5DEC8032L,
        0xEF845D5DL, 0xE98575B1L, 0xDC262302L, 0xEB651B88L,
        0x23893E81L, 0xD396ACC5L, 0x0F6D6FF3L, 0x83F44239L,
        0x2E0B4482L, 0xA4842004L, 0x69C8F04AL, 0x9E1F9B5EL,
        0x21C66842L, 0xF6E96C9AL, 0x670C9C61L, 0xABD388F0L,
        0x6A51A0D2L, 0xD8542F68L, 0x960FA728L, 0xAB5133A3L,
        0x6EEF0B6CL, 0x137A3BE4L, 0xBA3BF050L, 0x7EFB2A98L,
        0xA1F1651DL, 0x39AF0176L, 0x66CA593EL, 0x82430E88L,
        0x8CEE8619L, 0x456F9FB4L, 0x7D84A5C3L, 0x3B8B5EBEL,
        0xE06F75D8L, 0x85C12073L, 0x401A449FL, 0x56C16AA6L,
        0x4ED3AA62L, 0x363F7706L, 0x1BFEDF72L, 0x429B023DL,
        0x37D0D724L, 0xD00A1248L, 0xDB0FEAD3L, 0x49F1C09BL,
        0x075372C9L, 0x80991B7BL, 0x25D479D8L, 0xF6E8DEF7L,
        0xE3FE501AL, 0xB6794C3BL, 0x976CE0BDL, 0x04C006BAL,
        0xC1A94FB6L, 0x409F60C4L, 0x5E5C9EC2L, 0x196A2463L,
        0x68FB6FAFL, 0x3E6C53B5L, 0x1339B2EBL, 0x3B52EC6FL,
        0x6DFC511FL, 0x9B30952CL, 0xCC814544L, 0xAF5EBD09L,
        0xBEE3D004L, 0xDE334AFDL, 0x660F2807L, 0x192E4BB3L,
        0xC0CBA857L, 0x45C8740FL, 0xD20B5F39L, 0xB9D3FBDBL,
        0x5579C0BDL, 0x1A60320AL, 0xD6A100C6L, 0x402C7279L,
        0x679F25FEL, 0xFB1FA3CCL, 0x8EA5E9F8L, 0xDB3222F8L,
        0x3C7516DFL, 0xFD616B15L, 0x2F501EC8L, 0xAD0552ABL,
        0x323DB5FAL, 0xFD238760L, 0x53317B48L, 0x3E00DF82L,
        0x9E5C57BBL, 0xCA6F8CA0L, 0x1A87562EL, 0xDF1769DBL,
        0xD542A8F6L, 0x287EFFC3L, 0xAC6732C6L, 0x8C4F5573L,
        0x695B27B0L, 0xBBCA58C8L, 0xE1FFA35DL, 0xB8F011A0L,
        0x10FA3D98L, 0xFD2183B8L, 0x4AFCB56CL, 0x2DD1D35BL,
        0x9A53E479L, 0xB6F84565L, 0xD28E49BCL, 0x4BFB9790L,
        0xE1DDF2DAL, 0xA4CB7E33L, 0x62FB1341L, 0xCEE4C6E8L,
        0xEF20CADAL, 0x36774C01L, 0xD07E9EFEL, 0x2BF11FB4L,
        0x95DBDA4DL, 0xAE909198L, 0xEAAD8E71L, 0x6B93D5A0L,
        0xD08ED1D0L, 0xAFC725E0L, 0x8E3C5B2FL, 0x8E7594B7L,
        0x8FF6E2FBL, 0xF2122B64L, 0x8888B812L, 0x900DF01CL,
        0x4FAD5EA0L, 0x688FC31CL, 0xD1CFF191L, 0xB3A8C1ADL,
        0x2F2F2218L, 0xBE0E1777L, 0xEA752DFEL, 0x8B021FA1L,
        0xE5A0CC0FL, 0xB56F74E8L, 0x18ACF3D6L, 0xCE89E299L,
        0xB4A84FE0L, 0xFD13E0B7L, 0x7CC43B81L, 0xD2ADA8D9L,
        0x165FA266L, 0x80957705L, 0x93CC7314L, 0x211A1477L,
        0xE6AD2065L, 0x77B5FA86L, 0xC75442F5L, 0xFB9D35CFL,
        0xEBCDAF0CL, 0x7B3E89A0L, 0xD6411BD3L, 0xAE1E7E49L,
        0x00250E2DL, 0x2071B35EL, 0x226800BBL, 0x57B8E0AFL,
        0x2464369BL, 0xF009B91EL, 0x5563911DL, 0x59DFA6AAL,
        0x78C14389L, 0xD95A537FL, 0x207D5BA2L, 0x02E5B9C5L,
        0x83260376L, 0x6295CFA9L, 0x11C81968L, 0x4E734A41L,
        0xB3472DCAL, 0x7B14A94AL, 0x1B510052L, 0x9A532915L,
        0xD60F573FL, 0xBC9BC6E4L, 0x2B60A476L, 0x81E67400L,
        0x08BA6FB5L, 0x571BE91FL, 0xF296EC6BL, 0x2A0DD915L,
        0xB6636521L, 0xE7B9F9B6L, 0xFF34052EL, 0xC5855664L,
        0x53B02D5DL, 0xA99F8FA1L, 0x08BA4799L, 0x6E85076AL   },
    {   0x4B7A70E9L, 0xB5B32944L, 0xDB75092EL, 0xC4192623L,
        0xAD6EA6B0L, 0x49A7DF7DL, 0x9CEE60B8L, 0x8FEDB266L,
        0xECAA8C71L, 0x699A17FFL, 0x5664526CL, 0xC2B19EE1L,
        0x193602A5L, 0x75094C29L, 0xA0591340L, 0xE4183A3EL,
        0x3F54989AL, 0x5B429D65L, 0x6B8FE4D6L, 0x99F73FD6L,
        0xA1D29C07L, 0xEFE830F5L, 0x4D2D38E6L, 0xF0255DC1L,
        0x4CDD2086L, 0x8470EB26L, 0x6382E9C6L, 0x021ECC5EL,
        0x09686B3FL, 0x3EBAEFC9L, 0x3C971814L, 0x6B6A70A1L,
        0x687F3584L, 0x52A0E286L, 0xB79C5305L, 0xAA500737L,
        0x3E07841CL, 0x7FDEAE5CL, 0x8E7D44ECL, 0x5716F2B8L,
        0xB03ADA37L, 0xF0500C0DL, 0xF01C1F04L, 0x0200B3FFL,
        0xAE0CF51AL, 0x3CB574B2L, 0x25837A58L, 0xDC0921BDL,
        0xD19113F9L, 0x7CA92FF6L, 0x94324773L, 0x22F54701L,
        0x3AE5E581L, 0x37C2DADCL, 0xC8B57634L, 0x9AF3DDA7L,
        0xA9446146L, 0x0FD0030EL, 0xECC8C73EL, 0xA4751E41L,
        0xE238CD99L, 0x3BEA0E2FL, 0x3280BBA1L, 0x183EB331L,
        0x4E548B38L, 0x4F6DB908L, 0x6F420D03L, 0xF60A04BFL,
        0x2CB81290L, 0x24977C79L, 0x5679B072L, 0xBCAF89AFL,
        0xDE9A771FL, 0xD9930810L, 0xB38BAE12L, 0xDCCF3F2EL,
        0x5512721FL, 0x2E6B7124L, 0x501ADDE6L, 0x9F84CD87L,
        0x7A584718L, 0x7408DA17L, 0xBC9F9ABCL, 0xE94B7D8CL,
        0xEC7AEC3AL, 0xDB851DFAL, 0x63094366L, 0xC464C3D2L,
        0xEF1C1847L, 0x3215D908L, 0xDD433B37L, 0x24C2BA16L,
        0x12A14D43L, 0x2A65C451L, 0x50940002L, 0x133AE4DDL,
        0x71DFF89EL, 0x10314E55L, 0x81AC77D6L, 0x5F11199BL,
        0x043556F1L, 0xD7A3C76BL, 0x3C11183BL, 0x5924A509L,
        0xF28FE6EDL, 0x97F1FBFAL, 0x9EBABF2CL, 0x1E153C6EL,
        0x86E34570L, 0xEAE96FB1L, 0x860E5E0AL, 0x5A3E2AB3L,
        0x771FE71CL, 0x4E3D06FAL, 0x2965DCB9L, 0x99E71D0FL,
        0x803E89D6L, 0x5266C825L, 0x2E4CC978L, 0x9C10B36AL,
        0xC6150EBAL, 0x94E2EA78L, 0xA5FC3C53L, 0x1E0A2DF4L,
        0xF2F74EA7L, 0x361D2B3DL, 0x1939260FL, 0x19C27960L,
        0x5223A708L, 0xF71312B6L, 0xEBADFE6EL, 0xEAC31F66L,
        0xE3BC4595L, 0xA67BC883L, 0xB17F37D1L, 0x018CFF28L,
        0xC332DDEFL, 0xBE6C5AA5L, 0x65582185L, 0x68AB9802L,
        0xEECEA50FL, 0xDB2F953BL, 0x2AEF7DADL, 0x5B6E2F84L,
        0x1521B628L, 0x29076170L, 0xECDD4775L, 0x619F1510L,
        0x13CCA830L, 0xEB61BD96L, 0x0334FE1EL, 0xAA0363CFL,
        0xB5735C90L, 0x4C70A239L, 0xD59E9E0BL, 0xCBAADE14L,
        0xEECC86BCL, 0x60622CA7L, 0x9CAB5CABL, 0xB2F3846EL,
        0x648B1EAFL, 0x19BDF0CAL, 0xA02369B9L, 0x655ABB50L,
        0x40685A32L, 0x3C2AB4B3L, 0x319EE9D5L, 0xC021B8F7L,
        0x9B540B19L, 0x875FA099L, 0x95F7997EL, 0x623D7DA8L,
        0xF837889AL, 0x97E32D77L, 0x11ED935FL, 0x16681281L,
        0x0E358829L, 0xC7E61FD6L, 0x96DEDFA1L, 0x7858BA99L,
        0x57F584A5L, 0x1B227263L, 0x9B83C3FFL, 0x1AC24696L,
        0xCDB30AEBL, 0x532E3054L, 0x8FD948E4L, 0x6DBC3128L,
        0x58EBF2EFL, 0x34C6FFEAL, 0xFE28ED61L, 0xEE7C3C73L,
        0x5D4A14D9L, 0xE864B7E3L, 0x42105D14L, 0x203E13E0L,
        0x45EEE2B6L, 0xA3AAABEAL, 0xDB6C4F15L, 0xFACB4FD0L,
        0xC742F442L, 0xEF6ABBB5L, 0x654F3B1DL, 0x41CD2105L,
        0xD81E799EL, 0x86854DC7L, 0xE44B476AL, 0x3D816250L,
        0xCF62A1F2L, 0x5B8D2646L, 0xFC8883A0L, 0xC1C7B6A3L,
        0x7F1524C3L, 0x69CB7492L, 0x47848A0BL, 0x5692B285L,
        0x095BBF00L, 0xAD19489DL, 0x1462B174L, 0x23820E00L,
        0x58428D2AL, 0x0C55F5EAL, 0x1DADF43EL, 0x233F7061L,
        0x3372F092L, 0x8D937E41L, 0xD65FECF1L, 0x6C223BDBL,
        0x7CDE3759L, 0xCBEE7460L, 0x4085F2A7L, 0xCE77326EL,
        0xA6078084L, 0x19F8509EL, 0xE8EFD855L, 0x61D99735L,
        0xA969A7AAL, 0xC50C06C2L, 0x5A04ABFCL, 0x800BCADCL,
        0x9E447A2EL, 0xC3453484L, 0xFDD56705L, 0x0E1E9EC9L,
        0xDB73DBD3L, 0x105588CDL, 0x675FDA79L, 0xE3674340L,
        0xC5C43465L, 0x713E38D8L, 0x3D28F89EL, 0xF16DFF20L,
        0x153E21E7L, 0x8FB03D4AL, 0xE6E39F2BL, 0xDB83ADF7L   },
    {   0xE93D5A68L, 0x948140F7L, 0xF64C261CL, 0x94692934L,
        0x411520F7L, 0x7602D4F7L, 0xBCF46B2EL, 0xD4A20068L,
        0xD4082471L, 0x3320F46AL, 0x43B7D4B7L, 0x500061AFL,
        0x1E39F62EL, 0x97244546L, 0x14214F74L, 0xBF8B8840L,
        0x4D95FC1DL, 0x96B591AFL, 0x70F4DDD3L, 0x66A02F45L,
        0xBFBC09ECL, 0x03BD9785L, 0x7FAC6DD0L, 0x31CB8504L,
        0x96EB27B3L, 0x55FD3941L, 0xDA2547E6L, 0xABCA0A9AL,
        0x28507825L, 0x530429F4L, 0x0A2C86DAL, 0xE9B66DFBL,
        0x68DC1462L, 0xD7486900L, 0x680EC0A4L, 0x27A18DEEL,
        0x4F3FFEA2L, 0xE887AD8CL, 0xB58CE006L, 0x7AF4D6B6L,
        0xAACE1E7CL, 0xD3375FECL, 0xCE78A399L, 0x406B2A42L,
        0x20FE9E35L, 0xD9F385B9L, 0xEE39D7ABL, 0x3B124E8BL,
        0x1DC9FAF7L, 0x4B6D1856L, 0x26A36631L, 0xEAE397B2L,
        0x3A6EFA74L, 0xDD5B4332L, 0x6841E7F7L, 0xCA7820FBL,
        0xFB0AF54EL, 0xD8FEB397L, 0x454056ACL, 0xBA489527L,
        0x55533A3AL, 0x20838D87L, 0xFE6BA9B7L, 0xD096954BL,
        0x55A867BCL, 0xA1159A58L, 0xCCA92963L, 0x99E1DB33L,
        0xA62A4A56L, 0x3F3125F9L, 0x5EF47E1CL, 0x9029317CL,
        0xFDF8E802L, 0x04272F70L, 0x80BB155CL, 0x05282CE3L,
        0x95C11548L, 0xE4C66D22L, 0x48C1133FL, 0xC70F86DCL,
        0x07F9C9EEL, 0x41041F0FL, 0x404779A4L, 0x5D886E17L,
        0x325F51EBL, 0xD59BC0D1L, 0xF2BCC18FL, 0x41113564L,
        0x257B7834L, 0x602A9C60L, 0xDFF8E8A3L, 0x1F636C1BL,
        0x0E12B4C2L, 0x02E1329EL, 0xAF664FD1L, 0xCAD18115L,
        0x6B2395E0L, 0x333E92E1L, 0x3B240B62L, 0xEEBEB922L,
        0x85B2A20EL, 0xE6BA0D99L, 0xDE720C8CL, 0x2DA2F728L,
        0xD0127845L, 0x95B794FDL, 0x647D0862L, 0xE7CCF5F0L,
        0x5449A36FL, 0x877D48FAL, 0xC39DFD27L, 0xF33E8D1EL,
        0x0A476341L, 0x992EFF74L, 0x3A6F6EABL, 0xF4F8FD37L,
        0xA812DC60L, 0xA1EBDDF8L, 0x991BE14CL, 0xDB6E6B0DL,
        0xC67B5510L, 0x6D672C37L, 0x2765D43BL, 0xDCD0E804L,
        0xF1290DC7L, 0xCC00FFA3L, 0xB5390F92L, 0x690FED0BL,
        0x667B9FFBL, 0xCEDB7D9CL, 0xA091CF0BL, 0xD9155EA3L,
        0xBB132F88L, 0x515BAD24L, 0x7B9479BFL, 0x763BD6EBL,
        0x37392EB3L, 0xCC115979L, 0x8026E297L, 0xF42E312DL,
        0x6842ADA7L, 0xC66A2B3BL, 0x12754CCCL, 0x782EF11CL,
        0x6A124237L, 0xB79251E7L, 0x06A1BBE6L, 0x4BFB6350L,
        0x1A6B1018L, 0x11CAEDFAL, 0x3D25BDD8L, 0xE2E1C3C9L,
        0x44421659L, 0x0A121386L, 0xD90CEC6EL, 0xD5ABEA2AL,
        0x64AF674EL, 0xDA86A85FL, 0xBEBFE988L, 0x64E4C3FEL,
        0x9DBC8057L, 0xF0F7C086L, 0x60787BF8L, 0x6003604DL,
        0xD1FD8346L, 0xF6381FB0L, 0x7745AE04L, 0xD736FCCCL,
        0x83426B33L, 0xF01EAB71L, 0xB0804187L, 0x3C005E5FL,
        0x77A057BEL, 0xBDE8AE24L, 0x55464299L, 0xBF582E61L,
        0x4E58F48FL, 0xF2DDFDA2L, 0xF474EF38L, 0x8789BDC2L,
        0x5366F9C3L, 0xC8B38E74L, 0xB475F255L, 0x46FCD9B9L,
        0x7AEB2661L, 0x8B1DDF84L, 0x846A0E79L, 0x915F95E2L,
        0x466E598EL, 0x20B45770L, 0x8CD55591L, 0xC902DE4CL,
        0xB90BACE1L, 0xBB8205D0L, 0x11A86248L, 0x7574A99EL,
        0xB77F19B6L, 0xE0A9DC09L, 0x662D09A1L, 0xC4324633L,
        0xE85A1F02L, 0x09F0BE8CL, 0x4A99A025L, 0x1D6EFE10L,
        0x1AB93D1DL, 0x0BA5A4DFL, 0xA186F20FL, 0x2868F169L,
        0xDCB7DA83L, 0x573906FEL, 0xA1E2CE9BL, 0x4FCD7F52L,
        0x50115E01L, 0xA70683FAL, 0xA002B5C4L, 0x0DE6D027L,
        0x9AF88C27L, 0x773F8641L, 0xC3604C06L, 0x61A806B5L,
        0xF0177A28L, 0xC0F586E0L, 0x006058AAL, 0x30DC7D62L,
        0x11E69ED7L, 0x2338EA63L, 0x53C2DD94L, 0xC2C21634L,
        0xBBCBEE56L, 0x90BCB6DEL, 0xEBFC7DA1L, 0xCE591D76L,
        0x6F05E409L, 0x4B7C0188L, 0x39720A3DL, 0x7C927C24L,
        0x86E3725FL, 0x724D9DB9L, 0x1AC15BB4L, 0xD39EB8FCL,
        0xED545578L, 0x08FCA5B5L, 0xD83D7CD3L, 0x4DAD0FC4L,
        0x1E50EF5EL, 0xB161E6F8L, 0xA28514D9L, 0x6C51133CL,
        0x6FD5C7E7L, 0x56E14EC4L, 0x362ABFCEL, 0xDDC6C837L,
        0xD79A3234L, 0x92638212L, 0x670EFA8EL, 0x406000E0L  },
    {   0x3A39CE37L, 0xD3FAF5CFL, 0xABC27737L, 0x5AC52D1BL,
        0x5CB0679EL, 0x4FA33742L, 0xD3822740L, 0x99BC9BBEL,
        0xD5118E9DL, 0xBF0F7315L, 0xD62D1C7EL, 0xC700C47BL,
        0xB78C1B6BL, 0x21A19045L, 0xB26EB1BEL, 0x6A366EB4L,
        0x5748AB2FL, 0xBC946E79L, 0xC6A376D2L, 0x6549C2C8L,
        0x530FF8EEL, 0x468DDE7DL, 0xD5730A1DL, 0x4CD04DC6L,
        0x2939BBDBL, 0xA9BA4650L, 0xAC9526E8L, 0xBE5EE304L,
        0xA1FAD5F0L, 0x6A2D519AL, 0x63EF8CE2L, 0x9A86EE22L,
        0xC089C2B8L, 0x43242EF6L, 0xA51E03AAL, 0x9CF2D0A4L,
        0x83C061BAL, 0x9BE96A4DL, 0x8FE51550L, 0xBA645BD6L,
        0x2826A2F9L, 0xA73A3AE1L, 0x4BA99586L, 0xEF5562E9L,
        0xC72FEFD3L, 0xF752F7DAL, 0x3F046F69L, 0x77FA0A59L,
        0x80E4A915L, 0x87B08601L, 0x9B09E6ADL, 0x3B3EE593L,
        0xE990FD5AL, 0x9E34D797L, 0x2CF0B7D9L, 0x022B8B51L,
        0x96D5AC3AL, 0x017DA67DL, 0xD1CF3ED6L, 0x7C7D2D28L,
        0x1F9F25CFL, 0xADF2B89BL, 0x5AD6B472L, 0x5A88F54CL,
        0xE029AC71L, 0xE019A5E6L, 0x47B0ACFDL, 0xED93FA9BL,
        0xE8D3C48DL, 0x283B57CCL, 0xF8D56629L, 0x79132E28L,
        0x785F0191L, 0xED756055L, 0xF7960E44L, 0xE3D35E8CL,
        0x15056DD4L, 0x88F46DBAL, 0x03A16125L, 0x0564F0BDL,
        0xC3EB9E15L, 0x3C9057A2L, 0x97271AECL, 0xA93A072AL,
        0x1B3F6D9BL, 0x1E6321F5L, 0xF59C66FBL, 0x26DCF319L,
        0x7533D928L, 0xB155FDF5L, 0x03563482L, 0x8ABA3CBBL,
        0x28517711L, 0xC20AD9F8L, 0xABCC5167L, 0xCCAD925FL,
        0x4DE81751L, 0x3830DC8EL, 0x379D5862L, 0x9320F991L,
        0xEA7A90C2L, 0xFB3E7BCEL, 0x5121CE64L, 0x774FBE32L,
        0xA8B6E37EL, 0xC3293D46L, 0x48DE5369L, 0x6413E680L,
        0xA2AE0810L, 0xDD6DB224L, 0x69852DFDL, 0x09072166L,
        0xB39A460AL, 0x6445C0DDL, 0x586CDECFL, 0x1C20C8AEL,
        0x5BBEF7DDL, 0x1B588D40L, 0xCCD2017FL, 0x6BB4E3BBL,
        0xDDA26A7EL, 0x3A59FF45L, 0x3E350A44L, 0xBCB4CDD5L,
        0x72EACEA8L, 0xFA6484BBL, 0x8D6612AEL, 0xBF3C6F47L,
        0xD29BE463L, 0x542F5D9EL, 0xAEC2771BL, 0xF64E6370L,
        0x740E0D8DL, 0xE75B1357L, 0xF8721671L, 0xAF537D5DL,
        0x4040CB08L, 0x4EB4E2CCL, 0x34D2466AL, 0x0115AF84L,
        0xE1B00428L, 0x95983A1DL, 0x06B89FB4L, 0xCE6EA048L,
        0x6F3F3B82L, 0x3520AB82L, 0x011A1D4BL, 0x277227F8L,
        0x611560B1L, 0xE7933FDCL, 0xBB3A792BL, 0x344525BDL,
        0xA08839E1L, 0x51CE794BL, 0x2F32C9B7L, 0xA01FBAC9L,
        0xE01CC87EL, 0xBCC7D1F6L, 0xCF0111C3L, 0xA1E8AAC7L,
        0x1A908749L, 0xD44FBD9AL, 0xD0DADECBL, 0xD50ADA38L,
        0x0339C32AL, 0xC6913667L, 0x8DF9317CL, 0xE0B12B4FL,
        0xF79E59B7L, 0x43F5BB3AL, 0xF2D519FFL, 0x27D9459CL,
        0xBF97222CL, 0x15E6FC2AL, 0x0F91FC71L, 0x9B941525L,
        0xFAE59361L, 0xCEB69CEBL, 0xC2A86459L, 0x12BAA8D1L,
        0xB6C1075EL, 0xE3056A0CL, 0x10D25065L, 0xCB03A442L,
        0xE0EC6E0EL, 0x1698DB3BL, 0x4C98A0BEL, 0x3278E964L,
        0x9F1F9532L, 0xE0D392DFL, 0xD3A0342BL, 0x8971F21EL,
        0x1B0A7441L, 0x4BA3348CL, 0xC5BE7120L, 0xC37632D8L,
        0xDF359F8DL, 0x9B992F2EL, 0xE60B6F47L, 0x0FE3F11DL,
        0xE54CDA54L, 0x1EDAD891L, 0xCE6279CFL, 0xCD3E7E6FL,
        0x1618B166L, 0xFD2C1D05L, 0x848FD2C5L, 0xF6FB2299L,
        0xF523F357L, 0xA6327623L, 0x93A83531L, 0x56CCCD02L,
        0xACF08162L, 0x5A75EBB5L, 0x6E163697L, 0x88D273CCL,
        0xDE966292L, 0x81B949D0L, 0x4C50901BL, 0x71C65614L,
        0xE6C6C7BDL, 0x327A140AL, 0x45E1D006L, 0xC3F27B9AL,
        0xC9AA53FDL, 0x62A80F00L, 0xBB25BFE2L, 0x35BDD2F6L,
        0x71126905L, 0xB2040222L, 0xB6CBCF7CL, 0xCD769C2BL,
        0x53113EC0L, 0x1640E3D3L, 0x38ABBD60L, 0x2547ADF0L,
        0xBA38209CL, 0xF746CE76L, 0x77AFA1C5L, 0x20756060L,
        0x85CBFE4EL, 0x8AE88DD8L, 0x7AAAF9B0L, 0x4CF9AA7EL,
        0x1948C25CL, 0x02FB8A8CL, 0x01C36AE4L, 0xD6EBE1F9L,
        0x90D4F869L, 0xA65CDEA0L, 0x3F09252DL, 0xC208E69FL,
        0xB74E6132L, 0xCE77E25BL, 0x578FDFE3L, 0x3AC372E6L  }
};


#define N 16
//定义初始化需要用到的加密结构
typedef struct _BLOWFISH_CTX
{
    //定义初始化的pbox 以及 sbox 在程序中进行初始化
    unsigned int pbox[N + 2];  //总共18
    unsigned int sbox[4][256];
}BLOWFISH_CTX, * PBLOWFISH_CTX;

/*
初始化函数 此函数功能如下
1.接受key 与 keylen参数（当然keylen）可以自己计算
2.初始化sbox 将全局的sbox的内容复制到CTX中的sbox中
3.初始化pbox pbox的初始化方法如下
    1.迭代18论。然后每一轮都设置CTX的pbox
    2.CTX.pbox需要使用全局pbox ^ data
    3.data是一个四字节整数。其中存储的就是key的四个字节。
      key = "12345678abc"
      每一轮中 data = "1234"
               data = "5678"
               data = "abc1" //注意这里当超出keylen的时候。 data获取的key要从0开始
               。。。。
*/
bool BlowFishInit(BLOWFISH_CTX* blowCtx, unsigned char* key, unsigned int keylen);

/*
F函数
F函数是将一个32位数分别进行拆分。 拆分为四组。 每一组都作为sbox的索引值
然后进行下列运算

(（s1[a] + s2[b]) ^ s3[c]) + s4[d]
在编程中sbox是数组是从零开始。 所以s1 对应s[0]  s2对应s[1]
在编程中总结下公式：

temap = s[0][a] + s[1][b]
teamp = temp ^ s[2][c]'
temp =  temp + s[3][d]
简单的记住就是 ((a+b) ^ c)+d;
当然每个都对应下标为 0 1 2 3  s[0][a] s[1][b] s[2][c] s[3][d]
最后返回结果值 return temp
*/
static unsigned long F(BLOWFISH_CTX* ctx, unsigned long x);
//signed int F(PBLOWFISH_CTX blowCtx,unsigned int Data);
/*
加密函数：
首次用在初始化中是对一个64位0进行加密。
一次加密八个字节
核心思想为 加密左边与右边数据
左边数据直接 ^ PBOX
右边数据 = 右边数据 ^ f(左边数据）
然后进行交换。
以上是16轮的交换
剩下一轮则是

左边 = 左边^PBOX[N+1]
右边 = 右边^pbox[N]
最后设置相关数值


*/
void BlowFish_Encry(PBLOWFISH_CTX blowCtx, unsigned int* left, unsigned int* right);

/*
跟加密一样。只不过结果相反步骤如下：
首先遍历从最后一轮开始逐次递减

最后一轮数据 右边= 右边^PBOX[1] 左边数据 = 左边数据 ^pbox[0]
*/
void BlowFish_Decrypt(PBLOWFISH_CTX blowCtx, unsigned int* left, unsigned int* right);

blowfish.c

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
#define _CRT_SECURE_NO_WARNINGS
#include "BlowFish.h"
#include <string>
using namespace std;
bool BlowFishInit(BLOWFISH_CTX* blowCtx, unsigned char* key, unsigned int keylen)
{
    //设置传入的CTX中的SBOX值
    for (int Row = 0; Row < 4; Row++)
    {
        for (int Col = 0; Col < 256; Col++)
        {
            blowCtx->sbox[Row][Col] = ORIG_S[Row][Col];
        }
    }

    /*
    设置pbox
    1.循环18轮
    2.每轮都设置ctx.pbox值与data ^
    3.data = *(DWORD*)key[0] key[1].....
    */
    int KeyIndex = 0;
    for (int index = 0; index < N + 2; index++)
    {
        unsigned int data = 0;
        //填充data 将key的字符设置到data当中
        for (int k = 0; k < 4; k++)
        {
            //通过移位设置每个字符
            data = (data << 8) | key[KeyIndex];
            KeyIndex++;
            //如果超出了key长度 那么key要从开始
            if (KeyIndex >= keylen)
                KeyIndex = 0;
        }
        //否则不满足
        blowCtx->pbox[index] = ORIG_P[index] ^ data ^ 0x12;
    }

    //对一个64位0 进行加密。加密结果的输出设置到pbox[i]与pbox[i+1]中
    unsigned int Data1 = 0;
    unsigned int Data2 = 0;
    for (int i = 0; i < N + 2; i += 2)
    {
        BlowFish_Encry(blowCtx, &Data1, &Data2);
        blowCtx->pbox[i] = Data1;
        blowCtx->pbox[i + 1] = Data2;
    }
    //初始化Sbox
    for (int i = 0; i < 4; i++)
    {
        for (int j = 0; j < 256; j += 2)
        {
            BlowFish_Encry(blowCtx, &Data1, &Data2);
            blowCtx->sbox[i][j] = Data1;
            blowCtx->sbox[i][j + 1] = Data2;
        }
    }
    return true;
}

//unsigned int F(PBLOWFISH_CTX blowCtx, unsigned int Data)
//{
//
//    unsigned int a, b, c, d;
//    /*
//    利用位运算 取出下标值
//    */
//
//   a = (Data  >> 24) & 0xFF;
//   b = (Data >> 16) & 0xFF;
//   c = (Data >> 8) & 0xFf;
//   d = Data & 0xFF;
//
//
//    int TempValue = blowCtx->sbox[0][a] + blowCtx->sbox[1][b];
//    TempValue = TempValue ^ blowCtx->sbox[2][c];
//    TempValue = TempValue + blowCtx->sbox[3][d];
//    //公式 ((a+b)^c)+d
//    return TempValue;
//}
static unsigned long F(BLOWFISH_CTX* ctx, unsigned long x) {
    unsigned short a, b, c, d;
    unsigned long  y;

    /* d = (unsigned short)(x & 0xFF);
     x >>= 8;
     c = (unsigned short)(x & 0xFF);
     x >>= 8;
     b = (unsigned short)(x & 0xFF);
     x >>= 8;
     a = (unsigned short)(x & 0xFF);

     //都可以使用
     */
    a = (x >> 24) & 0xFF;
    b = (x >> 16) & 0xFF;
    c = (x >> 8) & 0xFf;
    d = x & 0xFF;

    y = ctx->sbox[0][a] + ctx->sbox[1][b];
    y = y ^ ctx->sbox[2][c];
    y = y + ctx->sbox[3][d];

    return y;
}

void BlowFish_Encry(PBLOWFISH_CTX blowCtx, unsigned int* left, unsigned int* right)
{
    unsigned long  Xl;
    unsigned long  Xr;
    unsigned long  temp;
    short       i;

    //加密部分首先将其分为left跟right两组。 每一组分别32位
    Xl = *left;
    Xr = *right;

    for (i = 0; i < N; ++i) {
        Xl = Xl ^ blowCtx->pbox[i];
        Xr = F(blowCtx, Xl) ^ Xr;

        temp = Xl;
        Xl = Xr;						//交换左右的值。 l = R r= l 继续下一轮循环。总共16轮
        Xr = temp;
    }

    temp = Xl;
    Xl = Xr;                          //16轮完毕之后交换变量
    Xr = temp;

    Xr = Xr ^ blowCtx->pbox[N];              //最后进行一次疑或
    Xl = Xl ^ blowCtx->pbox[N + 1];

    *left = Xl;
    *right = Xr;


}

void BlowFish_Decrypt(PBLOWFISH_CTX blowCtx, unsigned int* left, unsigned int* right)
{
    unsigned int Xl = *left;
    unsigned int Xr = *right;

    //倒着循环
    for (int i = N + 1; i > 1; --i)
    {
        Xl = Xl ^ blowCtx->pbox[i];
        Xr = Xr ^ F(blowCtx, Xl);

        //继续左右交换
        unsigned int temp = Xl;
        Xl = Xr;
        Xr = temp;
    }

    //最后一轮继续交换
    unsigned int temp = Xl;
    Xl = Xr;
    Xr = temp;

    //返还原
    Xr = Xr ^ blowCtx->pbox[1];
    Xl = Xl ^ blowCtx->pbox[0];

    //设置变量返回
    *left = Xl;
    *right = Xr;
}
int main() {
    // 从.data段提取的所有字节，按8字节分块
    unsigned char cipher_blocks[][8] = {
        {'y', 0xD3, 0xC6, 0x0F, 0xB0, 0xEB, ':', 0x04},
        {0xDF, 'q', 0x9C, 'L', 0x1C, 0x1A, 0xCB, 'j'},
        {0x03, 0x8D, 'W', 0xFA, 0xEF, 0xB9, 0x81, 0x08},
        {0x8C, '|', 'A', 0x11, 0x15, 0xBC, 0xB2, 0xA6},
        {0xC3, '\\', 0x98, ' ', 'N', 0xD4, 0xCF, 0x1B},
        {0xDA, 'M', 0xF4, 0xDB, '4', 0xD5, 0x18, 'o'}
    };
    int total_blocks = sizeof(cipher_blocks) / sizeof(cipher_blocks[0]);

    BLOWFISH_CTX ctx;
    const char* key = "Reverse engineering is very easy and interesting";
    BlowFishInit(&ctx, (unsigned char*)key, strlen(key));

    printf("解密结果（原始字节顺序）：\n");

    // 逐个块解密并输出
    for (int i = 0; i < total_blocks; i++) {
        unsigned int L, R;

        // 转换为大端序32位整数（高4字节为L，低4字节为R）
        L = (cipher_blocks[i][0] << 24) | (cipher_blocks[i][1] << 16) |
            (cipher_blocks[i][2] << 8) | cipher_blocks[i][3];
        R = (cipher_blocks[i][4] << 24) | (cipher_blocks[i][5] << 16) |
            (cipher_blocks[i][6] << 8) | cipher_blocks[i][7];

        // 解密
        BlowFish_Decrypt(&ctx, &L, &R);

        // 不进行小端序转换，直接按32位整数的原始字节顺序输出
        // 输出L的4个字节（高位到低位）
        putchar((L >> 24) & 0xFF);
        putchar((L >> 16) & 0xFF);
        putchar((L >> 8) & 0xFF);
        putchar(L & 0xFF);

        // 输出R的4个字节（高位到低位）
        putchar((R >> 24) & 0xFF);
        putchar((R >> 16) & 0xFF);
        putchar((R >> 8) & 0xFF);
        putchar(R & 0xFF);
    }
    printf("\n");

    return 0;
}

最终，得到flag！

whuctf新生练习赛-re-boss-wp
http://example.com/2025/08/06/whuctf新生练习赛-re-boss-wp/
作者
oxygen
发布于
2025年8月6日
许可协议
